DIGITAL MULTIMETER MS8233B
Digital Multimeter

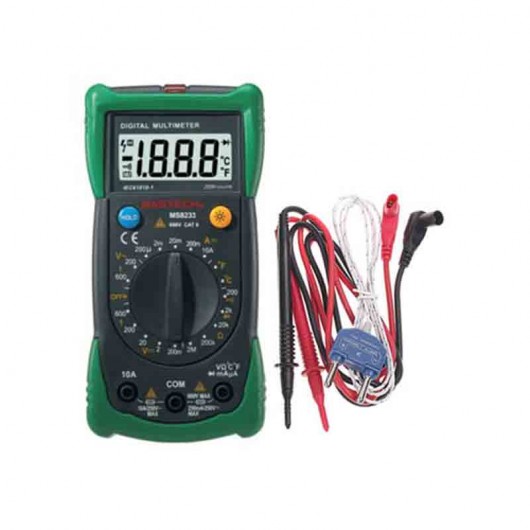

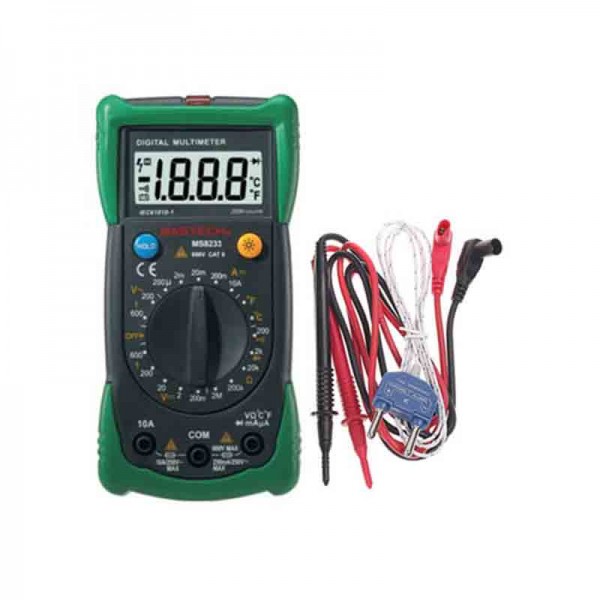

The Mastech MS8233B is a manual 19-range fully featured digital multimeter. It is capable of all standard functions including AC/DC voltage and DC current, resistance, diode check & continuity test. It has a back-lit LCD display with a maximum reading of 1,999.It has a built-in non-contact AC voltage detector that will detect any AC voltage greater than 90V and send out flash warning.
Digital Multimeter
The Mastech MS8233B is a manual 19-range fully featured digital multimeter. It is capable of all standard functions including AC/DC voltage and DC current, resistance, diode check & continuity test. It has a back-lit LCD display with a maximum reading of 1,999.It has a built-in non-contact AC voltage detector that will detect any AC voltage greater than 90V and send out flash warning.
Specification:
- Model: MS8233B
- Color: Green
- Material: ABS
- LCD Display: 2″
- Special Functions: Non-contact AC voltage detector (> 90V/AC)
- Max. Display:1999
- DC Voltage:200mV / 2V / 20V / 200V, +/- 0.5%; 600V, +/-0.8%.
- AC Voltage:200V/600V, +/- 1.2%
- DC Current:200uA/2mA/20mA/200mA, +/- 1.0%; 10A, +/- 3.0%
- Resistance:200 / 2K / 20K / 200K /2M, +/- 0.8%
- Measuring method: Dual-slope integration A/D converter
- Operating temperature: 0~40’C
- Storage temperature: -10~50’C
- Power Supply:1 x 6F22 (9V/Included)
- Display: LCD 2000 counts, updates 2-3/ sec
- Continuity test, diode test, backlight, data hold, overload indication
- Dimensions: 5.71 in x 2.87 in x 1.77 in (14.5 cm x 7.3 cm x 4.5 cm)
- Weight: 6.88 oz (195 g)
Made In China
