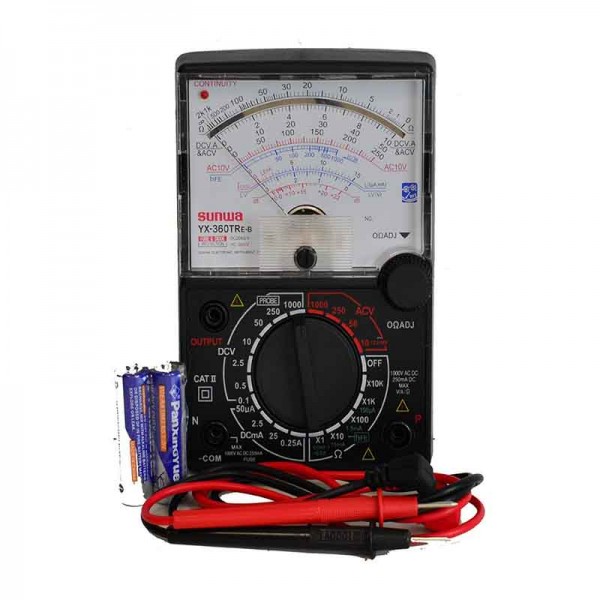

MULTIMETER ANALOG
AMM09ZCA
Multimeter Analog
Multimeter is used to check for voltages, resistance and continuity of electrical components, and small amounts of current in circuits. It is an indispensable tools for anyone who needs to test and repair electronic circuits.
Analog Multimeter
Multimeter is used to check for voltages, resistance and continuity of electrical components, and small amounts of current in circuits. It is an indispensable tools for anyone who needs to test and repair electronic circuits.
Specification:
–DC Voltage
- Ranges: 0.1-0.5-2.5-10-50-250-1000V
- Accuracy at FSD: 3;(1000V;5)
- Sensitivity: 20k Ω / V
- Extension: 25k V (with HV probe extra)
–AC Voltage
- Ranges: 10-50-250-1000V
- Accuracy at FSD : 4;(1000V;5)
- Sensitivity : 9K C / V
- Decibelmeter : -10 to + 22dB;0dB+1mw/600Ω
–DC Current
- Ranges: 50µ A (at 0.1VDC position), 2.5mA, 25mA, 0.25mA, *10A
- Accuracy at FSD: 3(10A;5)
- Volt Drop: 250mV
–Resistance:
- Ranges: x1-0.2Ω up to 2kΩ, Midseale, at 20Ω; x10-2Ω up to 20kΩ, Midseale, at 200Ω; x100x100-20Ω up to 200kΩ, midseale, at 2kΩ; x1K-200KΩ up to 2MΩ, Midseale, at 20K Ω; x10K-2KΩ up to 20MΩ, Midseale, at 200KΩ
- Accuracy at FSD: 3
- Iceo 150µ A – 15mA-150mA
- hFE 0-1000 (with connector extra)
- Size 148 X 100 X 35mm
