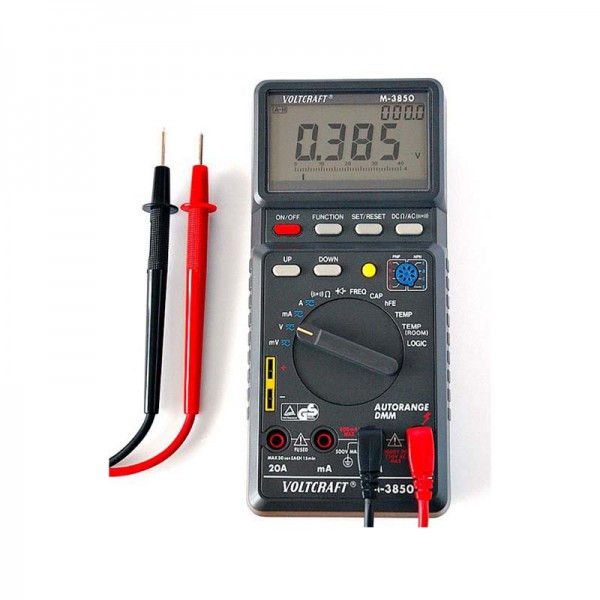

Multimeter Digital
AMM08ZCA
Digital Multimeter
A multimeter, also called a volt-ohm meter or VOM, is a device that measures resistance, voltage and current in electronic circuits. Some also test diodes and continuity. Multimeters are small, lightweight and battery operated, and they can test a wide variety of electronic components in many situations, making them indispensable tools for anyone who needs to test and repair electronic circuits.
A digital multimeter is a instrument which is used to measure voltage, current, resistance also it can measures frequency and periodic waveforms. It manly used as test equipement, for example if you had created a circuit you can use it to see if there a fault so then it can be corrected.
Digital Multimeter
A multimeter, also called a volt-ohm meter or VOM, is a device that measures resistance, voltage and current in electronic circuits. Some also test diodes and continuity. Multimeters are small, lightweight and battery operated, and they can test a wide variety of electronic components in many situations, making them indispensable tools for anyone who needs to test and repair electronic circuits.
A digital multimeter is a instrument which is used to measure voltage, current, resistance also it can measures frequency and periodic waveforms. It manly used as test equipement, for example if you had created a circuit you can use it to see if there a fault so then it can be corrected.
Use of Multimeter:
- Digital meters tend to be more accurate, as they have a very high input impedance, so have less affect on the circuit being measured.
- Having a digital output gets round the parallax problem reading a needle.
- Having no moving parts, makes them more rugged and less likely to get out of calibration.
- The only downside of a digital meter is its harder to see a fluctuating measurement. Watching a needle is better in this case, than watch numbers change.
Specification:
- Name & Model: DT9205A(CE)
- 100% brand new and high quality
- Weight: 380g
- Large LCD display with high accuracy
- Measure AC/ DC voltage, AC/ DC current, resistance, capacitance and diode
- Stable performance, high reliability
- Max LCD display: 1999
- Operating condition: 0 to 40
- Power Supply:9V battery
- Dimension:186mm*86mm*33mm
- Comes with one black test lead and one red test lead
- LCD display panel angle selection: with the button in the top case, the display panel can be rotated to the best angle
- Digital multimeter is a great tool for electricians, contractors, and other such professions as well as being a handy tool to have around the house for home repair.
Electrical Specification:
| Function | Range | Accuracy | Resolution |
| DC Vol. | 200mV | +-(0.5%+3d) | 0.1mV |
| 2v | +-(0.8%+2d) | 1mV | |
| 20v | 10mV | ||
| 200v | 0.1V | ||
| 1000v | +-(0.8%+4d) | 0.5V | |
| AC Vol. | 200mV | +-(1.2%+5d) | 0.1mV |
| 2V | +-(1.0%+5d) | 1mV | |
| 20V | 10mV | ||
| 200V | 0.1V | ||
| 750V | +-(1.2%+5d) | 0.375V | |
| AC Amp. | 2mA | +-(2.0%+3d) | 0.001mA |
| 20mA | 0.01mA | ||
| 200mA | +-(2.0%+5d) | 0.1mA | |
| 20A | +-(3.0%+10d) | 10mA | |
| DC Amp. | 2mA | +-(1.0%+5d) | 0.001mA |
| 20mA | 0.01mA | ||
| 200mA | 0.1mA | ||
| 20A | +-(2.0%+10d) | 10mA | |
| Resistance | 200Ω | +-(1.0%+10d) | 0.1Ω |
| 2KΩ | +-(1.0%+4d) | 1Ω | |
| 20KΩ | 10Ω | ||
| 200KΩ | 100Ω | ||
| 2MΩ | 1kΩ | ||
| 20MΩ | +-(1.0%+5d) | 10kΩ | |
| 200MΩ | +-(5.0%+20d) | 100kΩ | |
| Capacitance | 20nF | +-(4.0%+5d) | 0.01nF |
| 200nF | 0.1nF | ||
| 2µF | 1nF | ||
| 20µF | 10nF | ||
| 200µF | +-(5.0%+10d) | 100nF | |
| Diode | Forward current:1mA(Approx); Reverse voltage:2.8V | ||
Package :
- Digital multimeter*1
- Black test lead*1
- Red test lead*1
- User Manual*1
