BPAP Respiratory care
BPAP Respiratory care product
Bilevel positive airway pressure (BPAP), commonly referred to by the trademarked names BiPAP and BIPAP, is a form of non-invasive mechanical pressure support ventilationthat uses a time-cycled or flow-cycled change between two different applied levels of positive airway pressure.

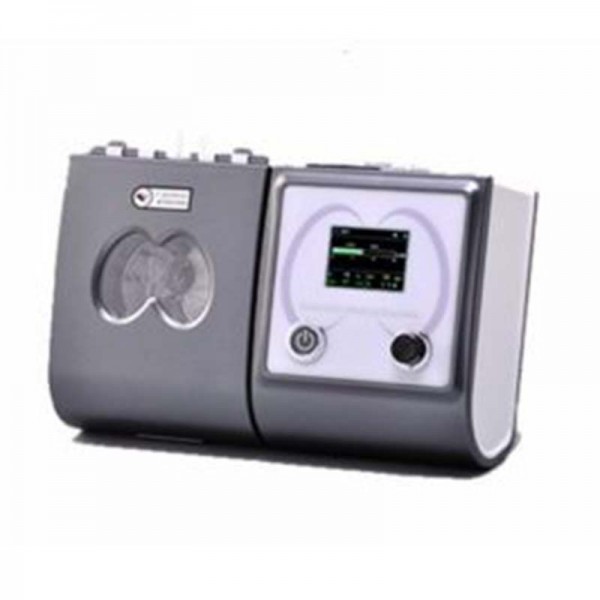

Product Model : BPAP 20
Features:
- 2.2 inch TFT High-Definition LCD Screen, Also Revealed A Number Of Monitoring Parameters; Respiratory Pressure, And Flow Velocity Waveform Display, Clear And Accurate;Smart Breath Stop;A Variety Of Alarm Function.
- Intelligent Automatic Compensation Function Of Leak.
- Mute Design, Low Noise High Efficiency, Quiet And Comfortable.
- New Integrated Heating Device, Wet Process Can, According To The Needs Of Patients With Different Setting Multiple Temperature And Humidity, Multiple Anti Regurgitation Design, Use Safety.
- Built-in High-Capacity Intelligent Memory Card, Can Record All Data When Using, Use Time Record, Breathing, And So on, To Evaluate Treatment Effect, And Can Print Report.
Product Parameters:
- Ventilation Modes: S/T, S, T, CPAP
- Pressure Range: 4 ~ 20 cmH2O (0.5 cmH2O Adjustable)
- Breathe in Sensitivity: 1 ~ 6 gears, Auto
- Exhale Sensitivity: 45% ~ 85% Flow Velocity (Peak), Auto
- IPAP Rise Time: 100 ~ 600 ms (100 ms Adjustable)
- Monitoring Parameters: IPAP, EPAP, Vtidal, Vleak, MinVent, RR
- Alarm Function: Pipeline Off Alarm, Suffocation Warning And Alarm When Power Supply Drop
- Screen: 2.2 “TFT
- Data Storage: 4 g SD Card
- Smart Boot: Optional
- Of Wetting Function: 0 to 6, 300 ml
- Noise: 30 db (A)
- Power Supply: 100 ~ 240 vac, 50 ~ 60 hz, 24 VDC, Universal Power
2.94000.390
Product Model : BPAP25 AUTO
Features:
- Inspiration Trigger For Auto Start-Up
- Automatic Stop After Put Off Mask
- Alarm When Accidental Power-Off
- In Time Alert Function When Mask And/Or Tubing Off-Line
Automatic Leakage And Altitude Compensation Ensure The Therapy Accuracy Anywhere. - Unique Delay-Off Feature Protects From Humidity Hazard.
- Color LCD Display For Operation In Dark
- Lighted User Buttons With Lockup Capability
- Integrated Designed The Heated Humidifier
- Smart Heater Automatic Restarts After Short Term Break.
- Patented Anti – Countercurrent Water Tank
- Infrared Controlled Humidifier Make User Safe And Comfortable.
- Low Noise Device
Product Parameters:
Universal Power Supply: Input Range 100-240 V, 50-60 Hz
Average Sound Level: Less than 30 dBA
Pressure Range: 4cm to 25cm H20 (±1 cm H20)
Ramp Time: 0 to 60minutes (5-min increments)
Ramp Start Pressure: 4 to Min EPAP Pressure (User adjustable)
Altitude Compensation: Automatic
Comfort Technologies: Smart-Flex
Leak Compensation: Automatic
2.94000.360
