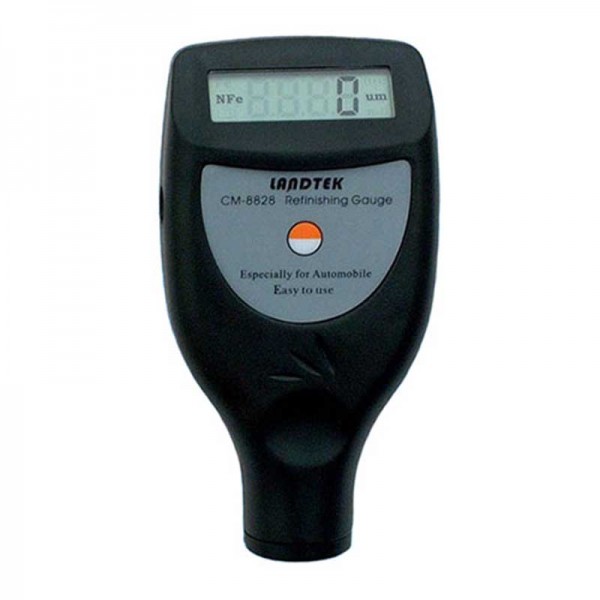

THICKNESS METER COATING CM-8828
Thickness Meter Coating
CM-8828
It is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc .in industries of petroleum, shipbuilding, power station, and machine manufacturing.
The F probes measure the thickness of non-magnetic materials such as paint, plastic porcelain enamel, copper, zinc, aluminum, chrome on magnetic materials such as iron, nickel etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile and paper.
The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass and non-magnetic stainless steel etc.
Specifications:
- In built probes
- Operating principle: magnetic induction/eddy current (F/NF)
- Measuring range:0-1250 um/0-50mil
- Resolution; 0.1/1
- Accuracy: ±1-3%n or ±2.5um
- Min. measuring area: 6mm
- Min. sample thickness: 0.3mm
- Battery indicator: low battery indicator
- Metric/ imperial: convertible
- Power supply: 4*1.5V AAA(UM-4)battery
- Auto power off
- Operating conditions:0-+45C(32F-104F),≤90%RH
- Dimensions: 126*65*27mm
- weight: 81g(not including battery)
- Optional accessories: other range 0-200um to 15000um
RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
Made in China
