THERMOCOUPLE /SENSOR

Thermocouple /Sensor Thermocouple and resistance thermometry are both sensors which measure temperature. They can directly measure the temperature ( ranges from minus 200 ºC to 1800 ºC ) of various of liquids, steam, gas and the surface of the solid during the production process.

Price
BDT0.00
Tax included
Qty

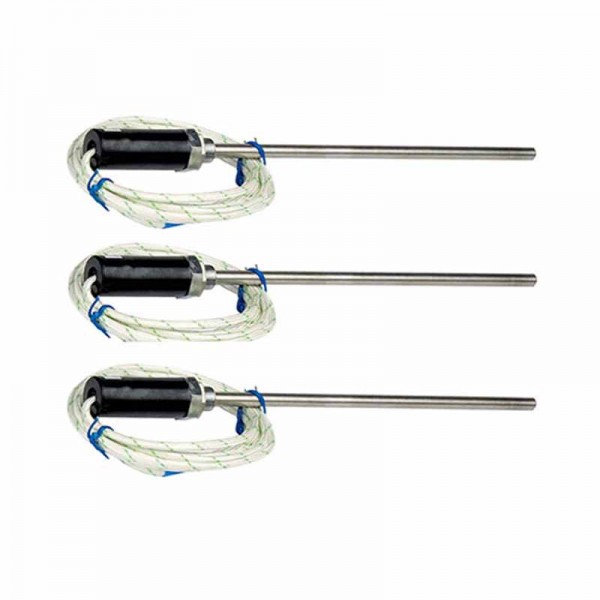

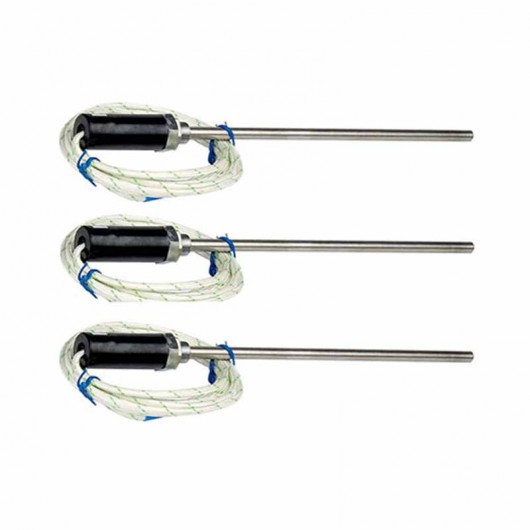

Thermocouple /Sensor

Thermocouple and resistance thermometry are both sensors which measure temperature. They are usually used matching with some secondary display meters. They can directly measure the temperature ( ranges from minus 200 centigrade to 1800 centigrade ) of various of liquids, steam, gas and the surface of the solid during the production process. They are widely used in the field of industry, agriculture, chemical and other automated temperature controlling.

Specifications:

  • Probe type thermocouple
  • Temperature range: 0-400 ºC
  • Protection tube material: Stainless steel 7 mm( diameter); Stainless steel 5 mm(diameter); Normal material 7mm(diameter).
  • Screw thread specification: M12*1
  • Material: K type →Nickel-chromium-silicon, E type →Nickel-chromium-constantan.
  • Sensing type: Thermocouple
  • Installation type: Duct type
  • Output signal type: Digital type
  • Length: 100 mm x 2000 mm, 150 mm x 2000 mm, 100 mm x 1000 mm, 150 mm x 1000 mm. Others sizes also available

Made in China
