TEMPERATURE CONTROLLER/ THERMOSTAT

Temperature Controller/ Thermostat

Application: Drying Case, Oven Backofen, Heating Device.

Features:

1. Control Type: Digital
2. Display Type: LED
3. Material: Plastic Housing
4. Mounting: Panel or DIN Rail
5. Setting Method: Dial-up Setting

Description:

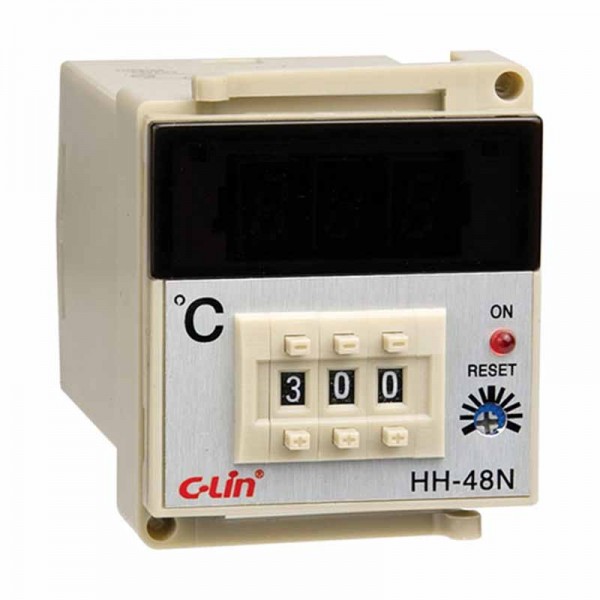

• Model: Hh48-N E5C4
• Input: K type, J type
• Setting precision: +_3% FS?
• Input sampling cycle: 0.2 second
• Relay Point Control Output: 250V AC 3 A(block load) 250V AC
  1A (Inductive load, cos=0.4).
• No point Voltage Control Output: ( SSR drives) 12 VDC,
  Max: 40 mA (short circuit protection).
• Current & voltage output: 4-20 mA, load resistance Max=500
  Ohm, 0-10VDC, load current ≤ 10mA.
• Assistant power supply (feeding): 10V, 12V, 24V can be
  Optional, load current≤ 20mA.
• Alarm mode: On/off mode, lag 1 (1) or 0.1
• Alarm Output: Relay Point: 250VAC 3A (resistance load)
  250V AC 1A (Inductive load, cos=0.4).
• Power Supply & Voltage: 85-240VAC, 180-275V AC, 50/
  60Hz, 24VAC/DC, 50/60Hz.
• Range of voltage: 85-275V AC, 165-380V AC, 22-26V AC/DC.
• Ambient Temperature: -5~50.
• Ambient Humidity: 80%RH.
• Weight: 230g.
• Power Loss: 4W.
• Insulation Resistance: ≥ 10meg-ohm (testing condition
  500V).
• Hole Size: 45+0.5 x 45+0.5
• Dimension Size: 48 x 48 x 90 mm

Made in China
