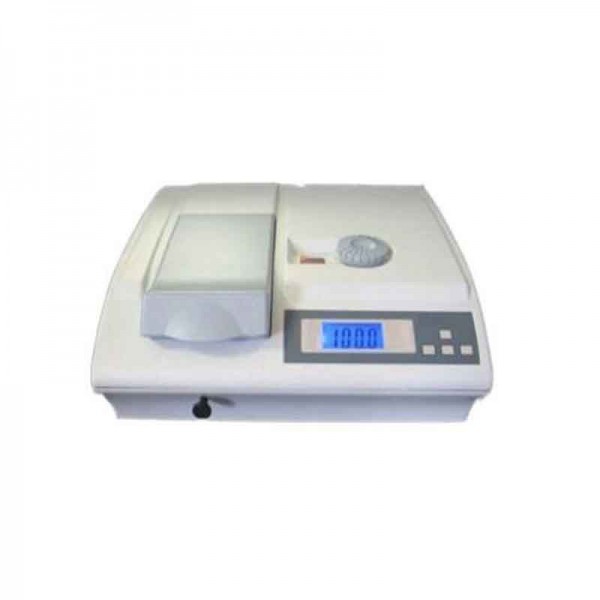

SPECTROPHOTOMETER AE-VIS721
Spectrophotometer
AE-VIS721
Specifications:
- Optical System: Single beam 1200 diffraction grating
- Wavelength Range: 340 NM -1000 NM
- Wavelength Accuracy: ±1 NM
- Wavelength Repeatability: 0.5 NM
- Spectrum Bandwidth: 4 NM
- Photometric Range: 0-100%T, 0-3.000 A
- Transmittance Accuracy: ±0.5%T
- Transmittance Repeatability 0.2%T
- Reading Range: 0-9999.
- Stray Light: ≤0.2%T (360 NM , J B 400)
- Light Source: Halogen Tungsten Lamp (20 W/12 V)
- Power Supply: AC 90-264 V.
Spectrophotometer
AE-VIS721
Features:
- Adoption of new single-chip microcomputer system, completely functions.
- 4 Digital LCD display, widely measurement range, higher accuracy.
- Thin-film-style keyboard, dust-proof & waterproof skin and easy to clean.
- To be avoid energy plummeting after reflector was burnt, it has adopt lens to gathering light.
- With a professional lamb holder so that can not be replaced the optical circuit of halogen tungsten lamb.
- Automatic calibration 0%T, 100%T & absorbency 0A.
Specifications:
- Optical System: Single beam 1200 diffraction grating
- Wavelength Range: 340 NM -1000 NM
- Wavelength Accuracy: ±1 NM
- Wavelength Repeatability: 0.5 NM
- Spectrum Bandwidth: 4 NM
- Photometric Range: 0-100%T, 0-3.000 A
- Transmittance Accuracy: ±0.5%T
- Transmittance Repeatability 0.2%T
- Reading Range: 0-9999.
- Stray Light: ≤0.2%T (360 NM , J B 400)
- Light Source: Halogen Tungsten Lamp (20 W/12 V)
- Power Supply: AC 90-264 V.
Spectrophotometer
AE-VIS721
Specifications:
- Optical System: Single beam 1200 diffraction grating
- Wavelength Range: 340 NM -1000 NM
- Wavelength Accuracy: ±1 NM
- Wavelength Repeatability: 0.5 NM
- Spectrum Bandwidth: 4 NM
- Photometric Range: 0-100%T, 0-3.000 A
- Transmittance Accuracy: ±0.5%T
- Transmittance Repeatability 0.2%T
- Reading Range: 0-9999.
- Stray Light: ≤0.2%T (360 NM , J B 400)
- Light Source: Halogen Tungsten Lamp (20 W/12 V)
- Power Supply: AC 90-264 V.
