SOLID STATE RELAY – SSR

Solid State Relay – SSR

Solid state relay (SSR) is an electronic switch. Solid state relays are widely used in testing instruments, displays, power plants, household appliances and automobiles etc.

Model no: HHG2-1/032F-38 10-80A; HHG2-1/032F-22 10-80A.

Specifications:

• Phase: Single
• Control voltage: 032:3-32V DC
• Control current: 6-35 mA
• Make-on voltage: 3V DC
• Break-off voltage: 1V DC
• Reverse voltage: 32V DC
• Load voltage: 12-250V DC
• Load current: 10, 15, 20, 25, 30, 40 A
• Instant voltage: 20:400V DC
• Voltage drop: <1.2V DC
• On-off time: ≤10mS
• Leakage current: ≤10mA.
• Dielectric strength: ≥2500V AC
• Insulation resistance: 500MΩ,500V DC
• Ambient temperature: Minus 30 to 80ºC
• Indicate methods: LED

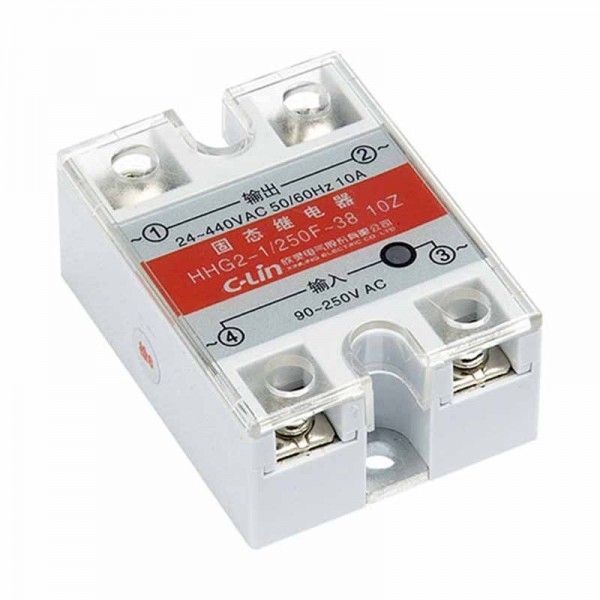

Model: HHG2-1/250F-38 10-80A; HHG2-1/250F-22 10-80A.

Specifications:

• Phase: Single
• Control voltage: 250:90-250V AC.
• Control current: 5-30mA.
• Make-on voltage: 90V AC
• Break-off voltage: 10V AC
• Load voltage: 30-240V AC, 40-440V AC.
• Load current: 10, 15, 20, 25, 30, 40, 60, 80 A.
• Instant voltage: 22:600VAC; 38:900V AC.
• Voltage drop: <1.6V AC.
• On-off time: ≤10mS
• Leakage current: ≤10mA
• Dielectric strength: ≥2500V AC
• Insulation resistance: 500MΩ,500V DC.
• Ambient temperature: Minus 30 to 80ºC
• Indicate methods: LED

Made in China
