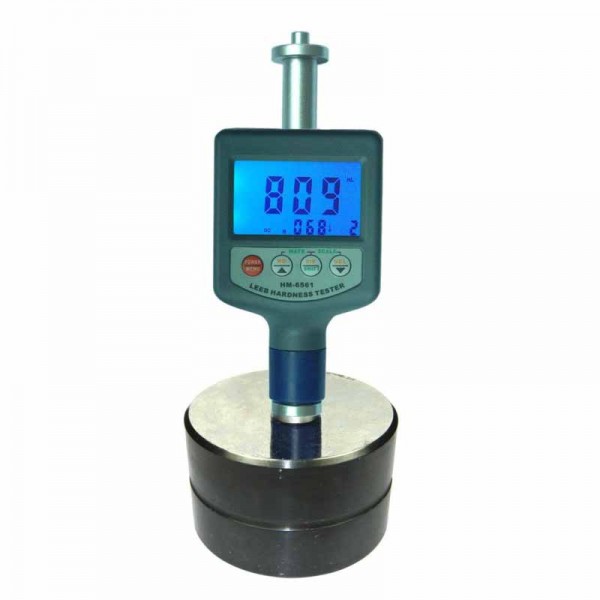

LEEB HARDNESS TESTER HM-6561

Leeb Hardness Tester [HM-6561]

This digital hardness tester measures the hardness of sample material in terms of Hardness Leeb (HL). Its very handy portable, but powerful and versatile hardness tester for different kind of metallic materials.

 Features:

1. Testing Features
2. Palm size for narrow space
3. Test at any angle, even upside down
4. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
5. Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
6. User recalibration function allowed
7. Average Times Setting
8. Durable metal case and hardness scales
9. D type Impact Device + D type Calibration block
10. Large screen LCD, showing all functions and parameters. With backglight
11. Optional Software to connect to PC for statistics and printing via RS232 port
12. Manual or Auto power off

Specifications:

• Measuring range: 200-900L
• Impact Directions: up, down, horizontal, slanting up, slanting down
• Impact Device: D Will handle the majority of hardness testing applications. Weight: 75g
• Measuring materials: 9 different common materials
• Steel and cast steel
• Cold work tool steel
• Stainless steel
• Grey cast iron
• Nodular cast iron
• Cast aluminum alloys
• Brass (copper-zinc alloys)
• Bronze (copper-aluminum alloys/copper-tin alloys)
• Wrought copper alloys
• Display: 12.5mm LCD with back light
• Accuracy: Display error ±0.8% at LD=900
• Conversion: HL-HRC-HRB-HB-HV-HSD
• With RS232C interface
• Memory: 50 Data can be stored and re-readable
• Work voltage: 3V (2 x 1.5V AAA size battery)
• Working temperature: -10~50°C
• Storage temperature:-30~60°C
• Relative humidity: =90%
• Dimension: 146 x 65 x 36mm
• Main Unit: 140g (not including batteries)
• Test Workpiece: 6.2lbs
• Whole Set with Hard Carrying Case: 8.5lbs (not including batteries)
