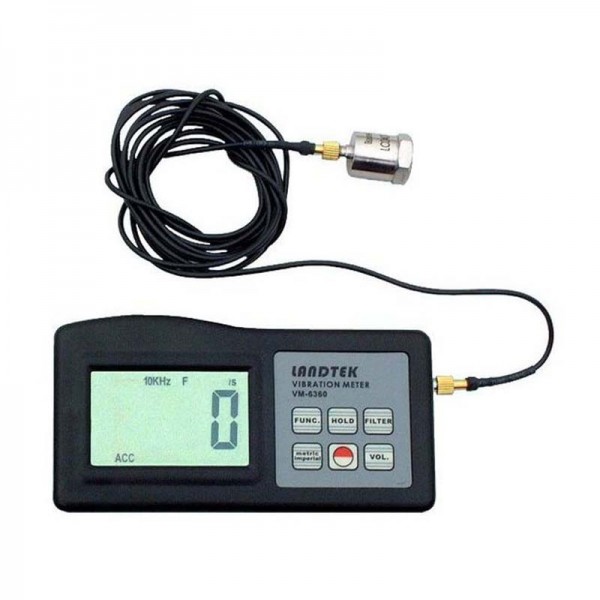

DIGITAL VIBRATION METER VM-6360

Digital Vibration Meter [VM-6360]

This Vibration Meter VM-6360 is a useful tool in machinery vibration monitoring. It measures acceleration (peak), displacement (peak to peak) velocity and revolution ( RPM) with high accuracy. The digital displayed vibration level is one of the best indications of machine running condition.

VM-6360 uses an external accelerometer and magnetic base to improve frequency response and provide a more repeatable vibration reading. Frequency ranges are utilized for broad detection abilities. It use headphones as an electronic stethoscope to listen for bearing defects or other mechanical faults while taking readings.

VM-6360 is ideal for fast and precise measurements of the speed the furthest common measuring parameter of the vibration measurement alternatively in cm/s (centimeter per second) or ft/s (foot/s).

It is specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes. In accordance with ISO2954, it can also be used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

Applications:

• Rotating Machinery for quality control
• Bearing Condition maintenance function
• Conditional examination of machines oscillations
• Predictive maintenance purposes
• Construction units such as imbalance, loop alignment error in rotary machines

Features:

1. Individual high quality accelerometer for accurate and repeatable measurements
2. Bearing condition monitoring function
3. Large and Clear LCD display
4. Light weight and easy to use
5. Piezoelectric accelerometer and magnetic base
6. 5 Parameters: Velocity, Acceleration, Displacement, Speed (RPM) and Frequency
7. Wide frequency range (10 Hz ~ 10 kHz) in acceleration mode
8. Automatic power off
9. Maximum Hold
10. Low Battery Indicator

Specifications:

• LCD Display: 4 digits, 18mm
• Transducer: Piezoelectric accelerometer
• Parameters measured: Velocity, Acceleration, Displacement, Speed (RPM) and Frequency.Measuring Range:
• Velocity (RMS): 0.01 ~ 40.00 cm/s (0 ~ 16.00 inch/s)
• Acceleration (Peak): 0.1 ~ 40.00 m/s2 (0.3 ~ 1312 ft/s2)
• Displacement (Peak ~ Peak): 0.001 – 4.000 mm (0.04 ~ 160.0 mil)
• Speed: 60 ~ 99,990 r/min (RPM) (Readings should be multiplied by 10 if the display show “10”)
• Frequency: 1 ~ 20 kHzFrequency Range:
• Acceleration (Peak): 10 Hz ~ 1 kHz (in “1” mode) and 10 Hz ~ 10 kHz (in “10” mode) for bearing condition checking
• Velocity (RMS): 10 Hz ~ 1 kHz
• Displacement (Peak ~ Peak): 10 Hz ~ 1 kHz
• Accuracy: ± 5% n + 2 digitsMetric / Imperial conversion:
• Output: AC Output 2.0V peak full scale (load resistance: above 10k)
• Power Supply: 4 x 1.5 AAA size batteries (not included)
• Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
• Operating Humidity: <90% R.H.
• Item Dimension: 124 (L) x 62 (W) x 30 (D) mm (4.9 x 2.4 x 1.2 inch)
• Item Weight: 120g (4.23 oz) (batteries excluded)

Set Included:

• 1 x Vibration Meter
• 1 x Powerful rare earth magnet
• 1 x Accelerometer
• 1 x Stinger probe (Cone)
• 1 x Stinger probe (Ball)
• 1 x Instruction Manual
• Standard Factory Package
