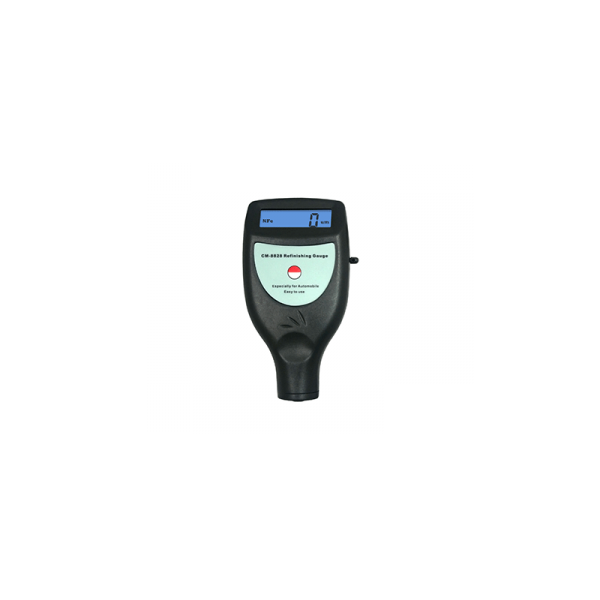

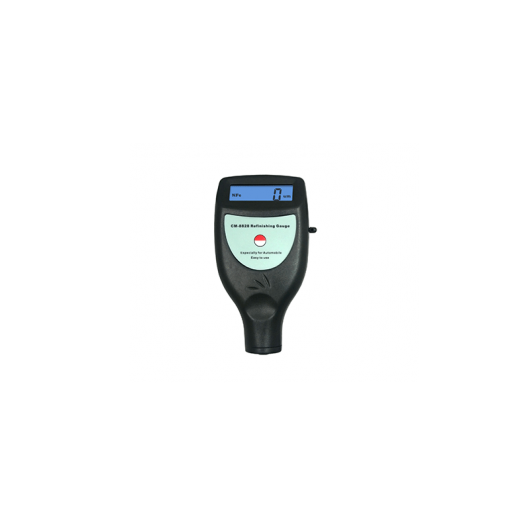

Coating thickness gauge CM-8828

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers, oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Specification:

In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery(Sometimes the battery will not send to you, please prepare them by yourself)
Auto power off
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 126x65x27mm
Weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
