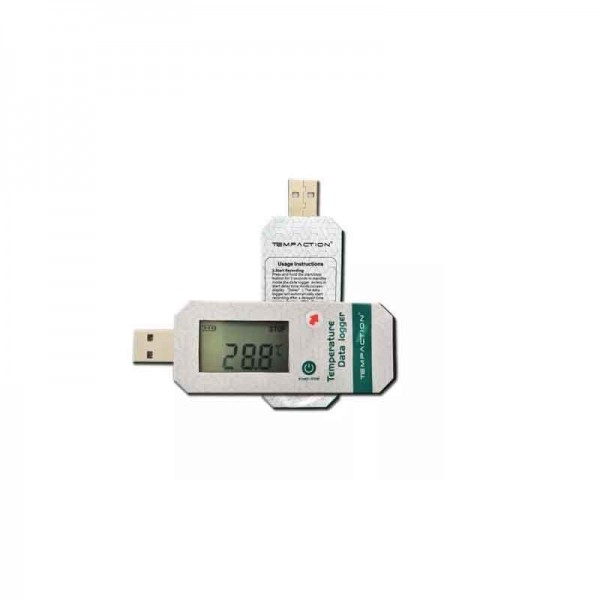

Data Logger Single Use with display
LCD Temperature Data Logger is a kind of Temperature Real cold chain data logger, especially for temperature monitoring during the distribution and storage of food, pharmaceuticals, chemicals and other perishable products. After record stopped, data logger can be directly inserted to the computer's USB port, and then automatically generates a PDF report without software and generate .LCD screen will display data and mode when use the data logger
Water proof level: IP67, Connection: USB 2.0
Size: 83.0mm L x 47.3mm W x 6.0mm H
Run Time: 90 days
Packaging: Food-Safety Plastic Bag
Measurement Range: -30 ℃ ~ +70 ℃(-22 ℉ ~ 158 ℉)
Display: LCD
Accuracy:±0.5 ℃ / 0.9 ℉
Record data : 9800 points -40000 points at most
Record cycle:6,15,30,45,60,90(days)optional , 96 days at most
Interval time: 15mins (optional )
Temperature correction :10points
Record time delay: 0~ 24hours (optional)
Button: start/stop
Report type: Encrypted PDF report
Connection: USB 2.0 Power supply: CR2450 lithium battery
Operating voltage: 3.0V
Supported operating system: WIN XP/7/8/9/10 and MAC
Weight: Approx. 10.4g
Usage instruction:
1.Start recording: Press and hold the start/stop button for 5 seconds in standby mode .the data logger enters in start delay time mode (screen display “delay”). The data logger will automatically start recording after a delayed time(screen display “Rec “)
2.Stop recording: Press and hold the start/stop button for 5 seconds in recording mode to stop recording data(screen display “Stop”)
3.Data reading: Insert the data logger into the the USB port of the computer,and open the U flash disk “PDF Disk” - PDF files to reading the data
