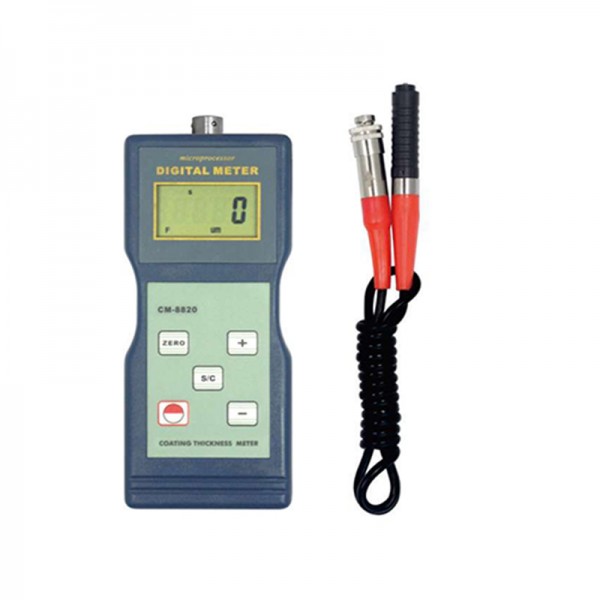

Digital Coating Thickness Gauge CM-8820
Widely used to measure the thickness of non-magnetic materials(e.g.paint,plastic,porcelain enamel,copper.zinc,aluminium,chrome etc.)on magnetic materials(e.g.iron,nickle etc.)
Digital Coating Thickness Gauge CM-8820
SPECIFICATIONS :
Display: 4 digits , 10mm LCD
Principle: F Magnetic Induction
Resolution: 0 ~ 2000µm / 0 ~ 80 mil
Range: 0.1µm (0 ~ 99.9µm), 1µm (over 100µm)
Accuracy: ±5%n or 5.0µm
Operating Condition: Temp : 0 ~ 40°C, Humidity : < 80%
Power supply: 4 x 1.5 AA(UM-3) battery
Size: 161 x 69 x 32 mm
Weight: About 260 g (including batteries)
Standard Accessories:
• Main Unit
• Probe (F Type)
• Calibration Base (F)
• Calibration Foils
• Carrying Case
• Operation Manual
2.24000.104
Widely used to measure the thickness of non-magnetic materials(e.g.paint,plastic,porcelain enamel,copper.zinc,aluminium,chrome etc.)on magnetic materials(e.g.iron,nickle etc.)
