TENS MASSAGER THERAPY

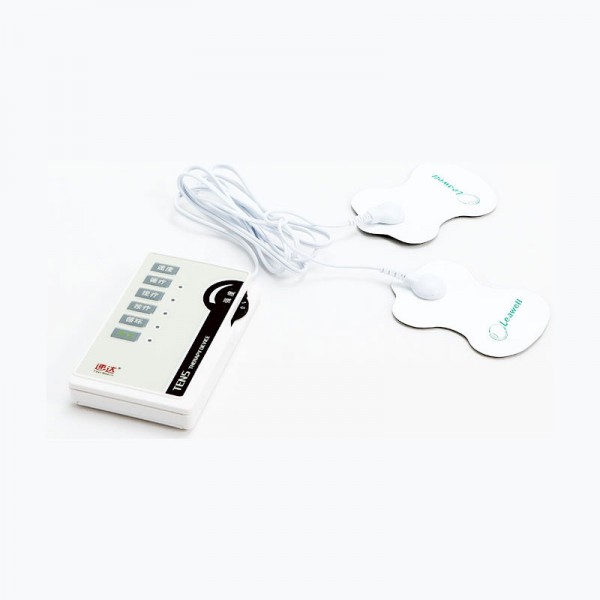

Electric Massager / TENS Massager Therapy Device

Electric massager / TENS massager therapy device Base on traditional Chinese medicine(TCM) theory, physics,bionics and electrobiology to developed and through many years of clinical practice.

Electric massager therapy device a type of physical therapy that uses electrical pulse to stimulation the channels and collaterals of body . often known as“TENS”( Transcutaneous electrical nerve stimulation) by transferring minute electrical impulses through electrodes which will be a sticky patch positioned on the skin. The electrical signals pass through the Massager/TENS unit through wires to the electrodes. Then the following reactions happen:

• The signal passes to the nerves beneath the skin. These nerves take information to the brain about what they feel, like touch, heat, pressure, and pain. The signals from Electric massager / TENS therapy device can substitute the message of pain on these nerves with a tingling sensation. This action alters the feeling of the pain.
• The Electric massager/ TENS therapy device signals might also augment the amount of endorphins, a pain-relieving chemical made naturally by the body.
• Electric massager/ TENS therapy device emitted impulses will arouse the nerves to the point that they can get rid of pain reactions, decreasing pain for sometime . Electric massager/ TENS therapy device can treats different kinds of aches. assist in minimizing sharp short-term pain, such as subsequent to surgical procedure or an accident. Chronic pain, like arthritis, back or muscle pain, or cancer pain may also be minimized with the help of Electric massager/ TENS therapy device. Few people have difficulties in taking pain medications. For them, Electric massager/ TENS therapy device with no side-effects is a secure, drug-free way to assist in controlling pain. Electric massager/ TENS therapy device can treat the pain ,and the low-volt electrical current transferred through the electrodes only make a way into the skin to the level of the nerve fibers, more often only one to two inches, which usually causes no harm to most people. that is why more physicians will recommend patients to endure use Electric massager/ TENS therapy device for treatment. Generally, a Electric massager/ TENS component or unit is a moveable, pocket-sized, battery-powered device. The unit makes use of a gentle, secure electrical signals to aid in managing the pain or ache.

 Specification:

• Output Intensity Control Adjust by intensity knob (0 – 9)
• Power Supply 3 volt battery (AAA / 1.5V*2)
• Speed Adjust by Speed key
• Pulse Modes Continuous
• Output Frequency 1 – 100 HZ
• Time control Set as 15 minutes , after used up the unit will auto shut off
• Size 60 x 100 x 15 mm
• Light weight 48g (without battery)
• Storage & transportation Temperature range: -40℃~55℃
• Humidity range :≤80%RH
• Six therapy Mode Tap, Vibrating , Massage ,Auto cycle

Unique Features:

1. Lightweight , portable , safety with low electric-current stimulate
2. Simple design and easy to operation
3. Speed and Intensity can be adjustable following user request. (i.e. dry or moist skin).
4. Warm set as auto cut off the power after used 15 minutes
5. can use for shoulder , waist , leg , arm or other body part which feeling pain

Warning:

• Do not use TENS on head
• If have cardiac device ,lung device or others medical electronic equipment in the body
• do not use this TENS massage device at the same time
• do not use it during pregnancy , menstrual periods , abnormal skin ,fever .
• do not give no expression ability people to use it.
• be sure to keep out of the reach of children
• this device should not be used while driving , operating machinery or during any activity
• in which involuntary muscle contractions may put the user at the undue risk of injury
• do not move the electric pad during the TENS device working.

Instructions For:

1. Insert the 3 volt (1.5V*2) battery onto the battery clips, the positive and negative poles of the battery should always be matched correctly with the respective battery clips.
2. Insert electric Pad wire into the TENS device and Electric Pad .
3. the electrode pad(Ashi Pad) must be attached on the user body( any position) to create a complete the electrical circuit
4. Remind: during massage if want to leave , move or change the electro Pad position
5. have to shut off the TENS device and turning Intensity knob to 0 first.
6. Press on the Power Control Key ( On /Off )
7. press the Therapy Mode key to choose the mode . total have 4 therapy mode (Tap, Vibrating , Massage ,Auto cycle)
8. Turning Intensity knob (0 – 9 ) to adjust intensity level ;
9. press Speed key to adjust therapy frequency .(these are need to adjust from low to high)
10. As the system set will Off the device and stop the treatment after 15 minutes .
11. end the treatment turning Intensity knob to 0
12. Remove the battery from the unit when the device will not be used for a long period of time. And separate the Electric Pad and wire to packing them. (Electric Pad stick onto the electric pad protect plate).

The Length of Treatment Or Simulation Time

• Same part or acupoint use three times a day , each time use 15 minutes.

Cleaning & Maintenance:

1. Do not immerse this TENS therapy device in any cleaning solution
2. should periodically wiped clean the unit using a damp cloth or neutral detergent
3. Electro Pad (Ashi pad) stick surface should be keep cleaning .after use should be stick back on the electric pad protect plate and packing them immediately. can use water to cleaning the stick surface to resume the viscous. if the viscous not enough should be change a new one.
